A coilover can look spot-on at the ride height you want and still work badly if the springs are loose at full droop, the collars are fighting each other, or preload has been used as a shortcut for lowering the car. Knowing how to set coilover preload properly keeps the spring located, preserves usable damper travel and gives you a baseline you can actually tune from.
For most road, fast-road and track builds, preload is not where you chase stance. It is where you make sure the spring is controlled before the car is back on its wheels.
What coilover preload actually does
Preload is the compression applied to the main spring while the suspension is fully extended and unloaded. On a typical height-adjustable coilover, you create it by winding the spring perch up until it touches the spring, then adding a specified amount of compression.
Its first job is simple: prevent the spring from moving loose between the upper mount and lower perch when the wheel drops into a pothole, crests a hill or hangs in the air on a jack. A loose spring can rattle, rotate unpredictably and fail to seat correctly as the suspension compresses again.
Preload also affects where the damper sits in its available travel. That is why excessive preload can make a car feel harsh or run out of rebound travel, particularly on coilovers with limited stroke. But there is an important distinction: on most modern coilovers with separate lower mounting-height adjustment, changing preload should not be your normal method of changing ride height.
If your kit uses a threaded lower mount, set spring preload first, then adjust ride height at the lower mount. That keeps the damper operating closer to the position intended by the manufacturer. On a body-threaded design without an independently adjustable lower mount, ride height and preload are more closely linked, so the manufacturer’s instructions matter even more.
Before you set coilover preload
Start with the coilover manufacturer’s documentation. BC Racing, HKS and other respected brands can specify a preload figure for a particular kit, and that figure always takes priority over generic advice. Spring length, helper-spring arrangement, damper stroke and top-mount design all change what is appropriate.
Park on level ground, chock the wheels and support the car safely on axle stands. Never work beneath a vehicle supported only by a jack. Remove the wheel if access to the collars is poor, clean the threaded body, and use the correct C-spanners. A wire brush and a small amount of suitable thread lubricant can save the collars from galling, especially on a car that sees wet British roads.
You will also want a tape measure or vernier caliper, a marker pen and a notebook. Record the installed spring length at every corner before touching anything. It makes it much easier to return to a known setup if you are testing changes for a track day.
How to set coilover preload step by step

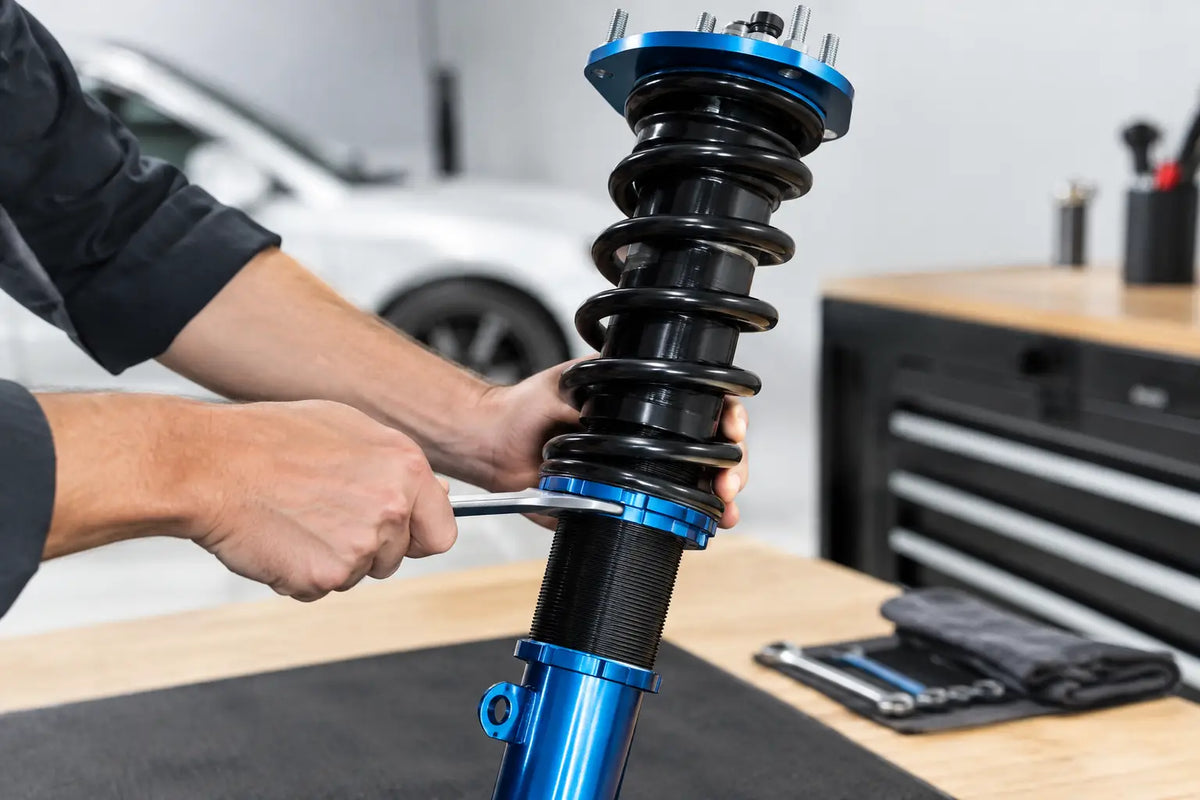

With the suspension hanging freely, loosen the locking collar beneath the spring perch. Wind the perch down until the spring has clear free play, then wind it back up slowly until it just contacts both seats. This is commonly called zero preload or seated preload.
Do not mistake the point where the collar first touches the spring for a heavily loaded spring. Check it by trying to rotate the spring by hand. At true zero preload, it should be seated without rattling, but it may still turn. The moment the spring cannot move vertically is your reference point.
Mark the collar position or measure the spring length at this point. Then add the amount of preload specified for your suspension. If the instruction is, for example, 5 mm, turn the spring perch until the spring is compressed by 5 mm from its zero-preload length. Measuring spring length is more reliable than counting turns because thread pitch varies between coilover brands and models.
Once the correct compression is applied, wind the locking collar firmly against the spring perch and tighten it with the proper spanners. The collars should be secure, but there is no benefit in attacking them with a hammer and punch. Damaged collars make future adjustment miserable.
Repeat the process at every corner. Front and rear spring rates may be different, and some kits have different prescribed preload values front to rear. Do not assume matching collar positions mean matching setup.
After setting preload, refit the wheels, lower the car and roll it forwards and backwards a few metres. This releases tyre and suspension bind. Bounce each corner gently, then measure ride height from a repeatable chassis or pinch-weld point rather than from the wheel arch. Arches vary, tyres vary and body panels are not a dependable datum.
If your coilovers have adjustable lower mounts, now set the final ride height by altering the mount length, not by further crushing the spring. Make equal changes side to side as a starting point, then corner-weight the car if it is a serious track build.
Zero preload, light preload and excessive preload
There is no single preload number that suits every build. The right setting depends on the coilover design and the spring package fitted.
Zero or minimal preload
A long main spring on a conventional road coilover may only need zero preload or a very small amount. The spring stays captive at full droop, the suspension retains maximum available extension travel and ride quality is usually less compromised.
This is often the correct direction for a daily-driven hot hatch or saloon where compliance matters. If the spring remains firmly seated when the suspension is fully extended, adding compression simply because it feels more ‘race car’ is not a performance upgrade.
Light manufacturer-specified preload
Many coilover systems call for a few millimetres of preload. This provides positive spring location and establishes the damper position the kit was designed around. Follow the specification rather than treating preload as a matter of internet folklore.
A short spring may need this additional compression to remain captive, but it should still be within the damper’s intended operating range. If you need a large amount of preload merely to stop the spring going loose, the spring length or coilover configuration may be wrong for the available droop travel.
Excessive preload
Over-compressing the spring can reduce available rebound travel and put the car closer to topping out over crests, kerbs and uneven roads. It can also make the suspension feel unexpectedly sharp despite a reasonable spring rate, because the damper is spending less time in its useful stroke range.
More preload does not automatically make the spring stiffer in the way enthusiasts often mean. The spring rate remains the spring rate. What changes is the force required before the suspension begins moving and the position of the system within its travel. Those are meaningful changes, but they are not a substitute for selecting the correct spring rate.
Helper springs and tender springs need a different approach
If your coilovers use a helper spring, do not set preload as though the main spring is the only component in the stack. A helper spring is designed to collapse under the vehicle’s static load while keeping the main spring seated at full droop. A tender spring may have a more active role and can contribute to wheel rate through part of the suspension travel.
The stack must be assembled in the manufacturer’s intended order, with the correct coupler where required. Set the system so the springs are located without coil bind at ride height or full compression. If you are unsure whether you have a helper or tender arrangement, stop before adding preload. The wrong setup can create coil bind, lost travel and inconsistent handling.
Set ride height after preload, then check the whole car
Once preload is correct, establish your target ride height. Keep it realistic for the roads and the intended use. A very low static height can look aggressive but leave too little bump travel, causing the car to hit bump stops and skate over rough surfaces. On track, that can mean less grip rather than more.
Check tyre-to-arch clearance, driveshaft angle, anti-roll-bar link position, brake-line routing and exhaust clearance. Lowered cars also need alignment. At minimum, have toe checked after significant ride-height changes; a small toe error can make a well-specified suspension setup feel nervous or eat tyres quickly.
For a track-focused build, corner-weighting is the next proper step. Preload is not a shortcut for balancing diagonal weight. Adjusting collars randomly to alter cross-weight can change ride height, damper position and spring seating all at once. Use scales and a planned approach.
Common coilover preload mistakes
The most common mistake is using the upper spring perch to lower a coilover that has an adjustable lower mount. That adds unnecessary preload and can leave the damper with poor travel. The second is setting springs loose because the car sits on them at static ride height. They still need to remain captive when the wheel is unloaded.
Another frequent issue is measuring from the wrong point. Wheel-arch gaps are useful for appearance, not precision. Use fixed chassis points, record every measurement and make one controlled change at a time.
Finally, do not ignore noises after adjustment. Clunks, spring pinging, collar movement or a spring that shifts off-centre at full droop all deserve investigation before the next spirited drive.
A correctly preloaded coilover is not glamorous, but it is the foundation for every adjustment that follows. Set the springs to the kit specification, use the lower mounts for ride height where your design allows it, then let proper alignment and testing show what your car really needs.
