BC Racing BR Series Coilovers – BMW 7 Series E38 Sedan 1994–2001 Extra Low 12/12 kg/mm

Transform the stance and chassis control of the BMW 7 Series E38 with the BC Racing BR Series Extra Low Coilover Kit.

Developed specifically for the rear-wheel-drive BMW E38 Sedan, this configuration combines BC Racing’s proven monotube BR Series dampers with an extended Extra Low ride-height range and firm 12 kg/mm front and rear spring rates.

The result is a significantly lower, more controlled E38 with reduced body roll, sharper response and a more direct connection between the driver and the chassis.

This 12/12 kg/mm specification is intended for customers who prioritise aggressive ride height, strong body control and precise handling. It is considerably firmer than the standard BR Series E38 configuration and is best suited to stance builds, performance road cars and vehicles running an intentionally low setup.

KEY FEATURES

• Vehicle-specific BC Racing BR Series coilover kit
• Designed for BMW 7 Series E38 RWD Sedan
• Extra Low configuration with increased lowering potential
• 12 kg/mm front spring rate
• 12 kg/mm rear spring rate
• 30-click simultaneous compression and rebound adjustment
• Monotube damper construction
• Linear piston and damping characteristics
• Ride-height adjustment independent of spring preload
• Dampers matched to the specified spring rates
• Fully rebuildable design
• Individual replacement and service components available
• Suitable for low road cars, stance builds and performance-focused E38 projects

TECHNICAL SPECIFICATION

Series: BC Racing BR Series
Configuration: BR-RA
Vehicle: BMW 7 Series Sedan
Chassis: E38
Production years: 1994–2001
Drivetrain: Rear-wheel drive
Version: Extra Low
Front spring rate: 12 kg/mm
Rear spring rate: 12 kg/mm
Damping adjustment: 30 clicks
Adjustment type: Simultaneous compression and rebound
Damper design: Monotube
Ride-height adjustment: Independent of spring preload
Rebuildable: Yes
Camber plates: Not included

EXTRA LOW CONFIGURATION

The Extra Low version is specifically configured to achieve a greater lowering range than the standard-height BC Racing kit.

It is intended for vehicles where a very low ride height is an essential part of the build. The shorter operating range and firm 12/12 kg/mm spring setup help maintain improved body control at lower ride heights compared with attempting to achieve the same stance using a standard coilover configuration.

The lowest possible setting is not necessarily the correct operating height. Sufficient damper travel, tyre clearance, steering movement and chassis clearance must always be maintained.

Actual achievable ride height depends on vehicle weight, wheel and tyre dimensions, suspension condition and the remaining vehicle setup.

DAMPING ADJUSTMENT

The BR Series provides 30 levels of damping adjustment, allowing the driver to change compression and rebound together through a single adjuster.

Softer settings can be used for road driving, while firmer settings provide increased control during faster driving and rapid direction changes. Because this version uses 12 kg/mm springs at both axles, the overall ride will remain performance-oriented even at softer damper settings.

Adjustment should always be carried out progressively, using equal settings on the left and right sides of each axle.

VEHICLE FITMENT

• BMW 7 Series Sedan E38 – 1994–2001
• Rear-wheel-drive models
• Petrol and diesel E38 variants
• Standard and long-wheelbase vehicles subject to VIN and suspension specification confirmation

Because the BMW E38 was available with several different factory suspension systems, we strongly recommend sending us the vehicle’s VIN before ordering.

IMPORTANT E38 FITMENT INFORMATION

Vehicles equipped with factory EDC electronic damping, rear self-levelling suspension or other electronically controlled suspension systems may require additional conversion components, coding or warning-light cancellation solutions.

BC Racing dampers do not communicate with the original BMW electronic damping control system.

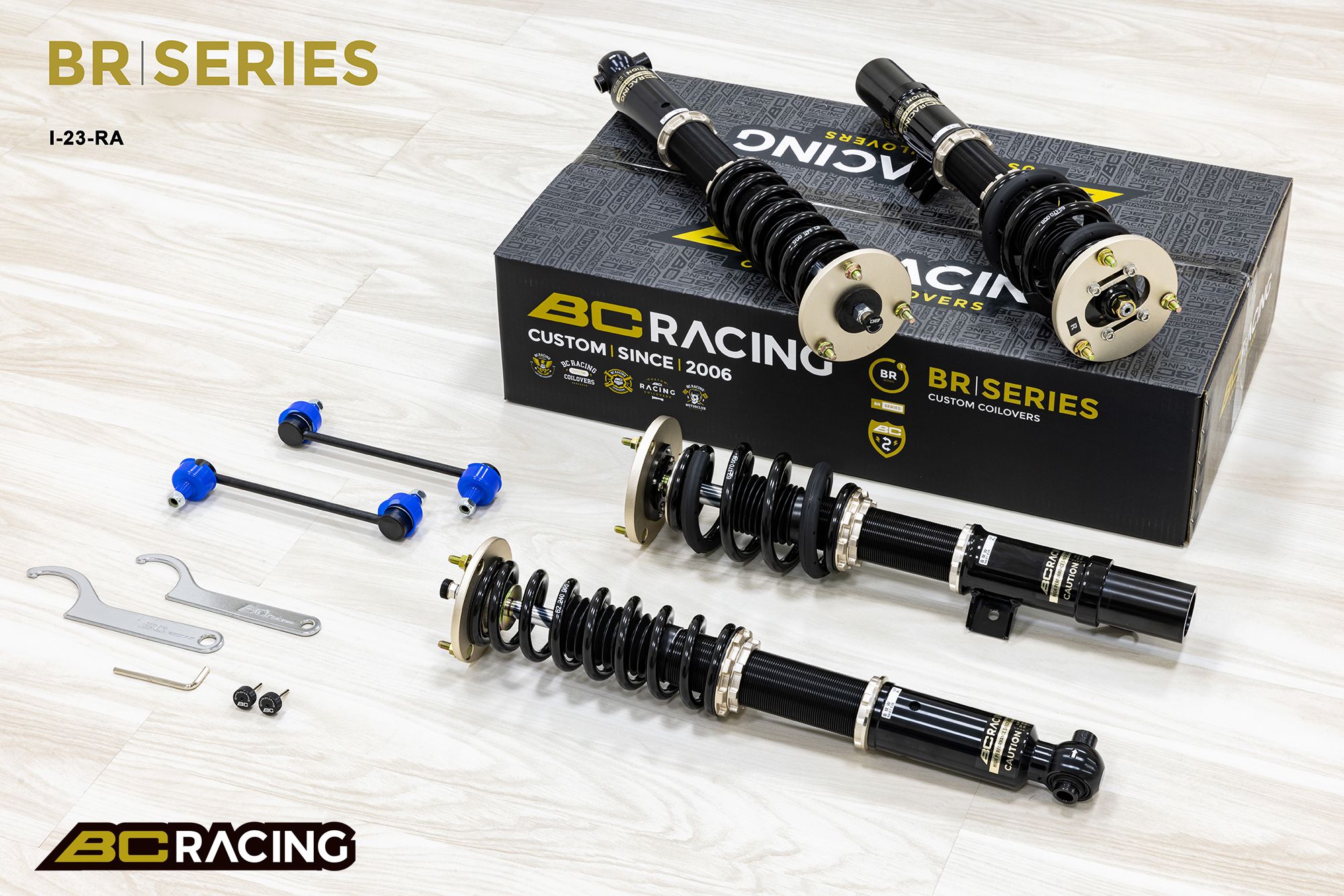

The kit contains the application-specific components shown in the product images. Adjustable camber plates are not included with this E38 kit.

Professional installation is strongly recommended. Wheel alignment must be completed after installation and after the final ride height has been selected.

WHY BUY BC RACING FROM TORQUE LAB?

Torque Lab is an official BC Racing dealer for Croatia and one of the brand’s leading regional specialists.

We do more than simply supply a boxed suspension kit. We help customers select the correct series, lowering range, spring rates and vehicle specification before the order is placed.

• Genuine BC Racing products
• Official BC Racing dealer
• Extensive experience with BC Racing suspension
• VIN-based fitment verification before purchase
• Assistance when choosing Standard or Extra Low versions
• Technical and setup support
• Access to replacement dampers, springs and service components
• CoC documentation support for eligible European applications
• Reliable delivery throughout Croatia and the European Union

COC DOCUMENTATION

BC Racing CoC documentation can be requested for eligible European kits.

After receiving the suspension, send us clear photographs of the individual serial-number labels. The document is normally issued within approximately 2–3 working days after the required information has been submitted.

Registration and road-use requirements vary between countries. The customer is responsible for confirming the applicable local approval requirements before installation.

SHIPPING & AVAILABILITY

Estimated delivery time is 10–16 working days, subject to current stock and production availability.

As this is a specific Extra Low 12/12 kg/mm configuration, we recommend contacting us before ordering so that availability and the estimated delivery date can be confirmed.

For a fitment check, availability confirmation or advice regarding the correct BC Racing configuration for your BMW E38, contact us at info@torquelab.eu.
