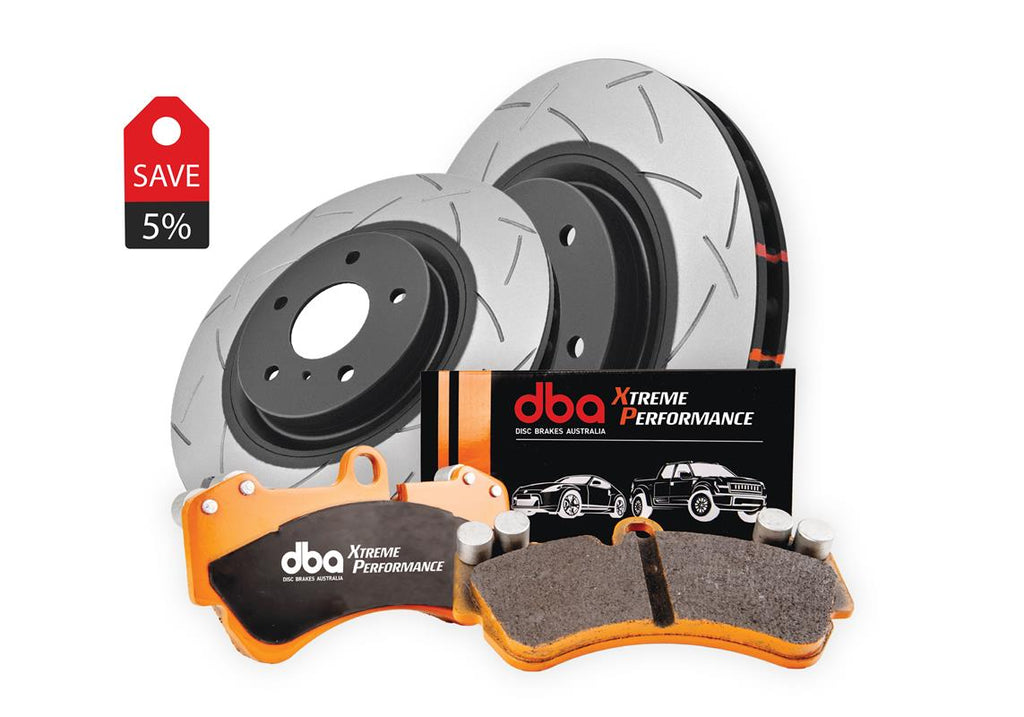

The DBA Brake Kit (DBA42224S + DB1678XP) is a high-performance braking upgrade designed for drivers seeking strong initial bite, excellent braking consistency, and reliable performance under demanding conditions.
This combo package pairs DBA 4000 Series T3 slotted brake discs with DBA Xtreme Performance (XP) brake pads, creating a perfectly matched braking solution engineered and tested by DBA for optimal compatibility and performance.

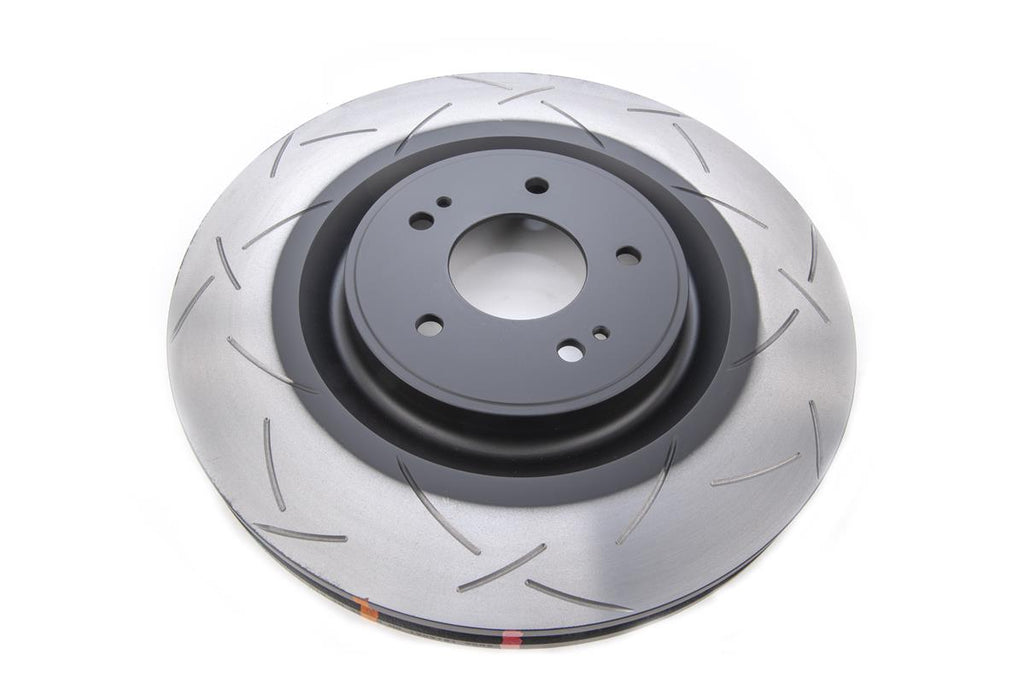

The 4000 Series rotors feature DBA’s advanced Kangaroo Paw ventilation system, improving heat dissipation and thermal stability under repeated heavy braking. Combined with T3 slot technology, these rotors help evacuate friction gases and debris while maintaining a clean contact surface between pad and disc.

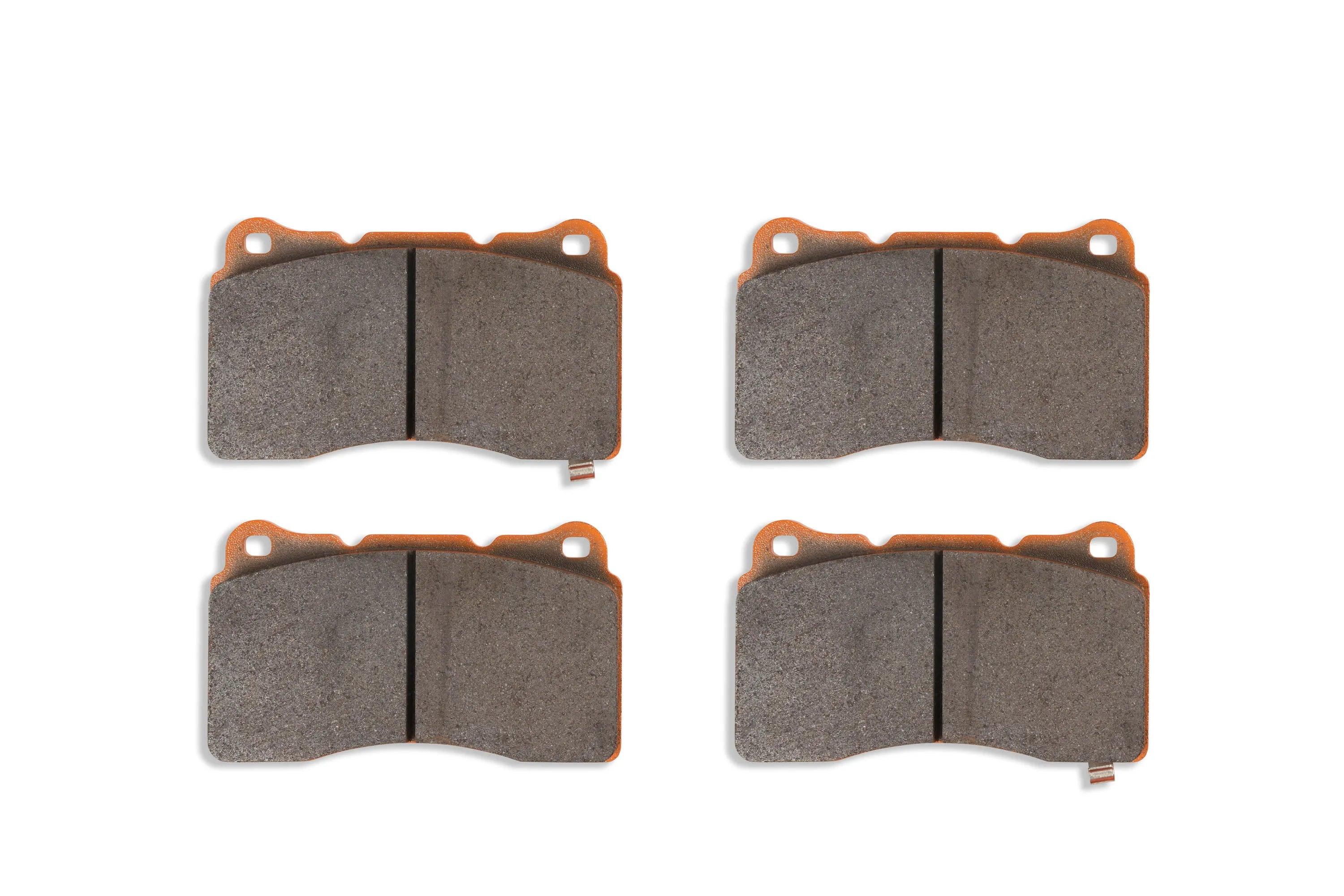

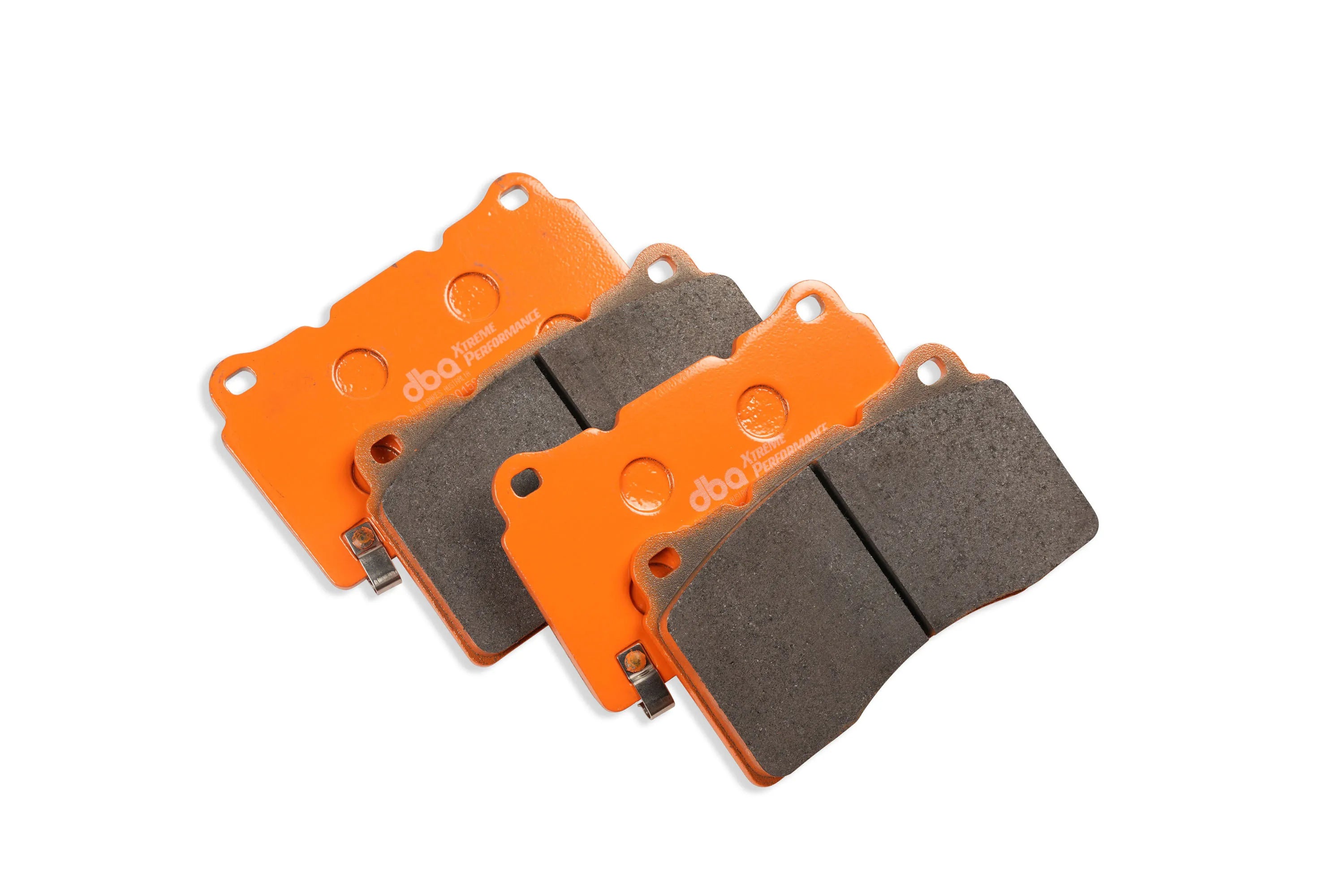

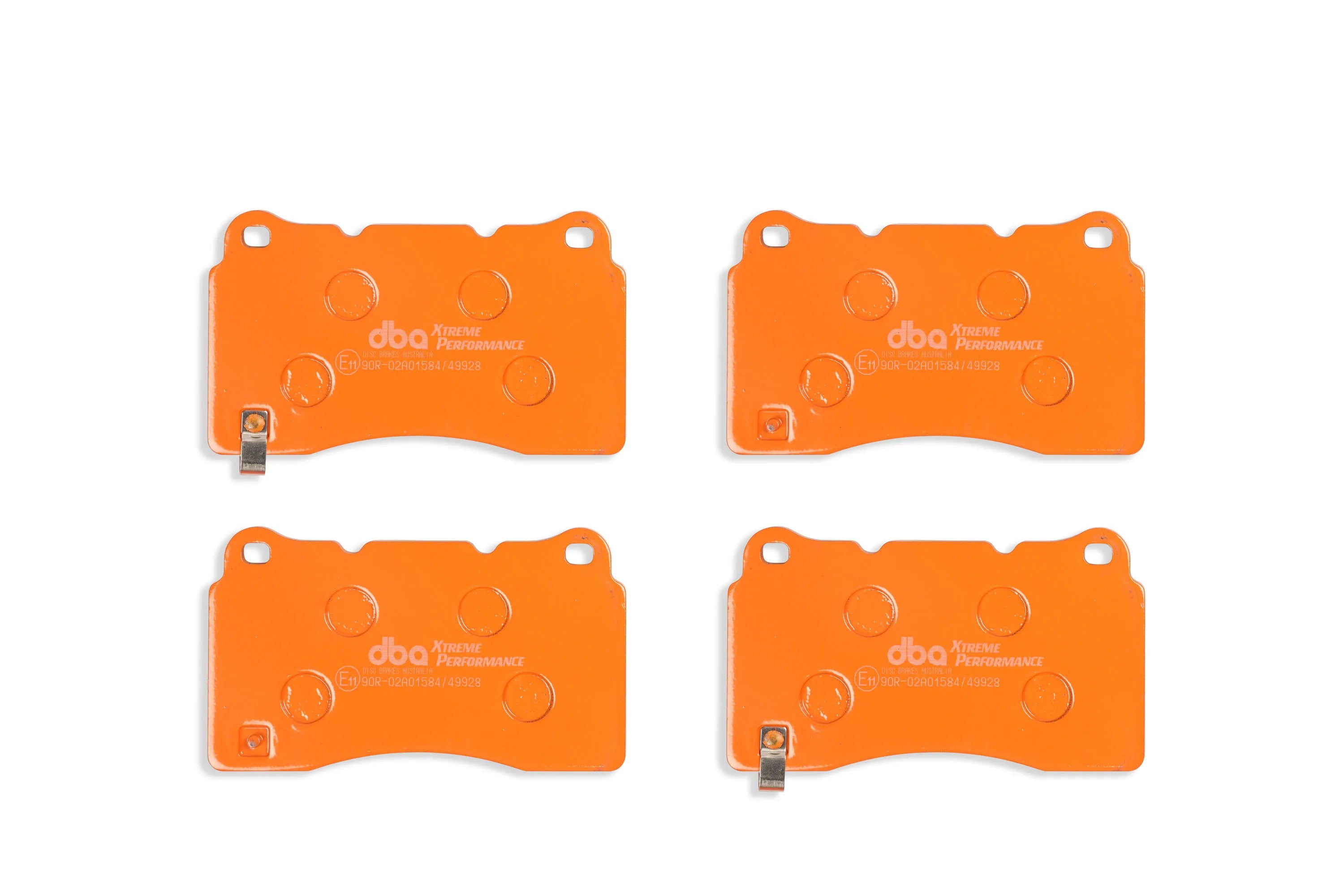

The included DBA XP brake pads are developed for heavy-duty street and occasional track use, offering high friction levels and consistent braking performance from low temperatures up to extreme operating conditions.
This complete kit provides excellent braking performance for high-power vehicles, making it ideal for spirited road driving and occasional track days.
Torque Lab is an official DBA dealer, providing expert support and tested motorsport solutions for performance braking systems.
Key Features
• Complete matched rotor and pad performance package
• Designed for street performance and occasional track use
• 5% cost saving compared to purchasing components separately
• DBA 4000 Series T3 slotted rotors for improved heat dissipation
• Kangaroo Paw ventilation system with 144 diamond and tear-drop pillars
• Thermal Stability Profiling (TSP) to reduce rotor distortion under extreme braking
• T3 slot design improves pad bite and gas evacuation
• DBA Xtreme Performance brake pads with semi-metallic carbon fibre compound
• G-G friction rating (average μ 0.45) for strong braking across a wide temperature range
• Stable braking performance up to 550°C (1022°F)
• Direct bolt-on installation with no modifications required
• Single manufacturer solution ensures full compatibility and warranty support
Kit Contents
2x DBA42224S
DBA 4000 Series T3 Slotted Brake Discs
1x DB1678XP
DBA Xtreme Performance Brake Pads – Front Axle
Vehicle Fitment
Mitsubishi Lancer Evolution X
2008 – 2016
2.0 Turbo
Front Axle
Brake Disc Specifications
Rotor Model: DBA42224S
Series: DBA 4000
Slot Pattern: T3 Slotted
Diameter: 350 mm
Thickness: 32 mm
Minimum Thickness: 30 mm
Height: 44 mm
Centre Bore: 69 mm
PCD: 5x114.3
Ventilation: Kangaroo Paw
Stage: Stage 4 Performance
ECE R90 Approval:
E1190R02/0660527*00
Weight: 11.8 kg (each)
Brake Pad Specifications

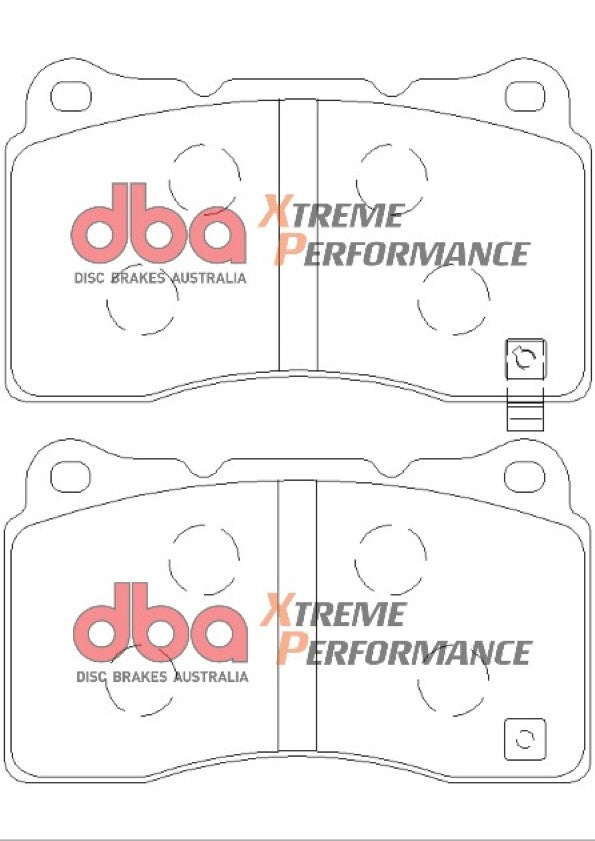

Pad Model: DB1678XP
Series: DBA Xtreme Performance
Pad Width: 131.8 mm
Pad Height: 77.3 mm
Pad Thickness: 14 mm
FMSI: 7902-D1001
OEM Reference: 26296FE100
Friction Rating: G-G
Operating Temperature Range: Up to 550°C
ECE R90 Approval:
E11 R90-02A01584/49928
Weight: 2.2 kg
Why Choose DBA Brake Kits
DBA brake kits combine engineered rotor technology and high-performance friction materials to deliver consistent braking performance even under demanding driving conditions.
The 4000 Series rotors and XP brake pads are extensively tested together to ensure predictable braking behaviour, improved heat management, and excellent pedal feel.
This makes the DBA combo kit an excellent upgrade for performance vehicles such as the Mitsubishi Lancer Evolution X.
