Upgrade the front braking performance of your Mitsubishi Lancer Evolution with the DBA4418S-1678XP front brake kit. This complete DBA brake upgrade package combines 2x DBA4418S 4000 Series T3 slotted front brake discs with 1x DB1678XP Xtreme Performance front brake pad set, creating a matched braking solution for Mitsubishi Lancer Evo 5, Evo 6, Evo 7, Evo 8 and Evo 9 models.
Designed for drivers who want stronger initial bite, consistent friction and reliable braking performance from low to high temperatures, this DBA brake kit is ideal for street performance, fast road driving and occasional track day use. By combining DBA 4000 Series T3 rotors with DBA Xtreme Performance pads, the kit delivers a balanced and extensively tested braking package from one manufacturer.
The DBA 4000 Series T3 front rotors feature Kangaroo Paw ventilation, T3 slotted design, XG150 high carbon alloyed iron and Thermal Stability Profiling for improved heat control, rotor strength and durability under repeated braking. The matching DBA XP pads use semi-metallic carbon fibre friction material with G-G Class friction and excellent high-temperature consistency up to 550°C.
This complete front brake kit is a direct-fit upgrade over the stock setup, with no modifications required when used on compatible Mitsubishi Lancer Evolution applications.
Key Features
- Complete DBA front brake kit for Mitsubishi Lancer Evolution 5-9
- Includes 2x DBA4418S 4000 Series T3 front brake discs
- Includes 1x DB1678XP Xtreme Performance front brake pad set
- Suitable for street performance and occasional track day use
- Matched disc and pad combination from DBA
- High initial bite and consistent friction from low to high temperatures
- Direct fit with no changes required over the stock brake setup
- DBA Kangaroo Paw ventilation for improved heat dissipation
- DBA T3 slots for enhanced pad bite and gas evacuation
- Thermal Stability Profiling for improved rotor durability under heavy braking
- Semi-metallic carbon fibre XP pad compound
- G-G Class friction with 0.45 average μ
- Optimal braking consistency up to 550°C / 1022°F
- ECE R90 certified discs and pads

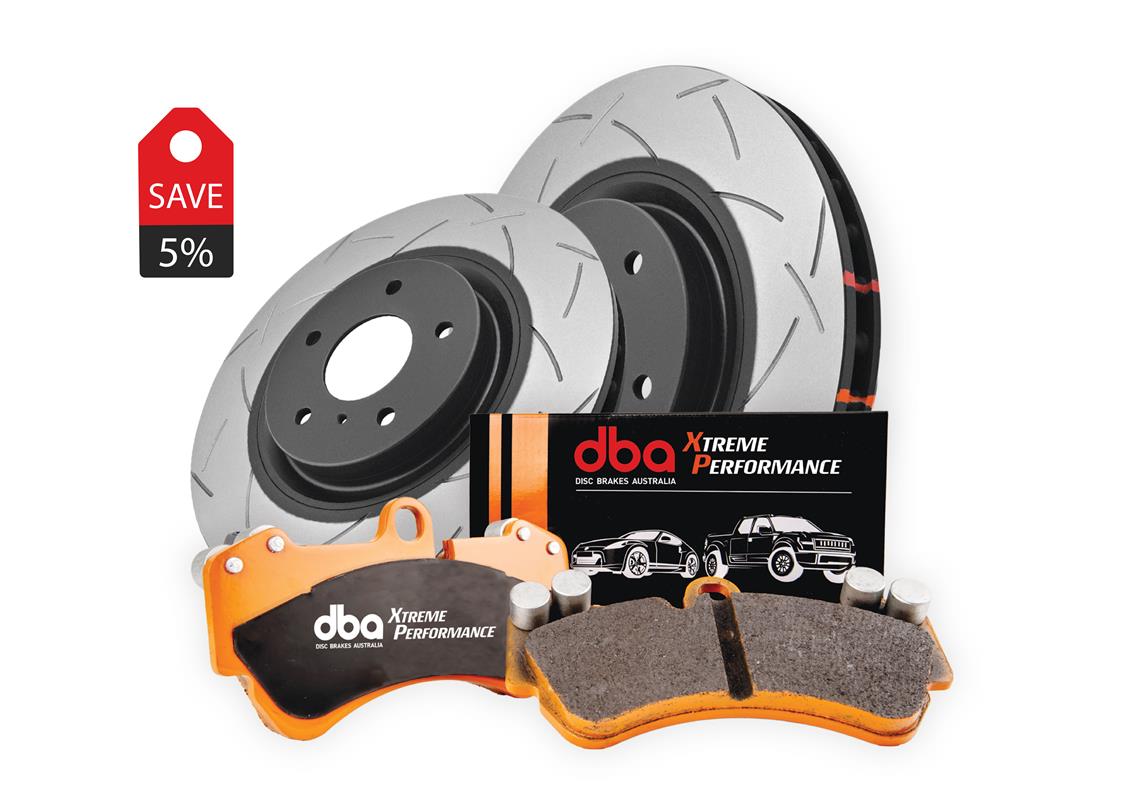

Kit Includes
- 2x DBA4418S - 4000 Series T3 front brake discs
- 1x DB1678XP - Xtreme Performance front brake pad set

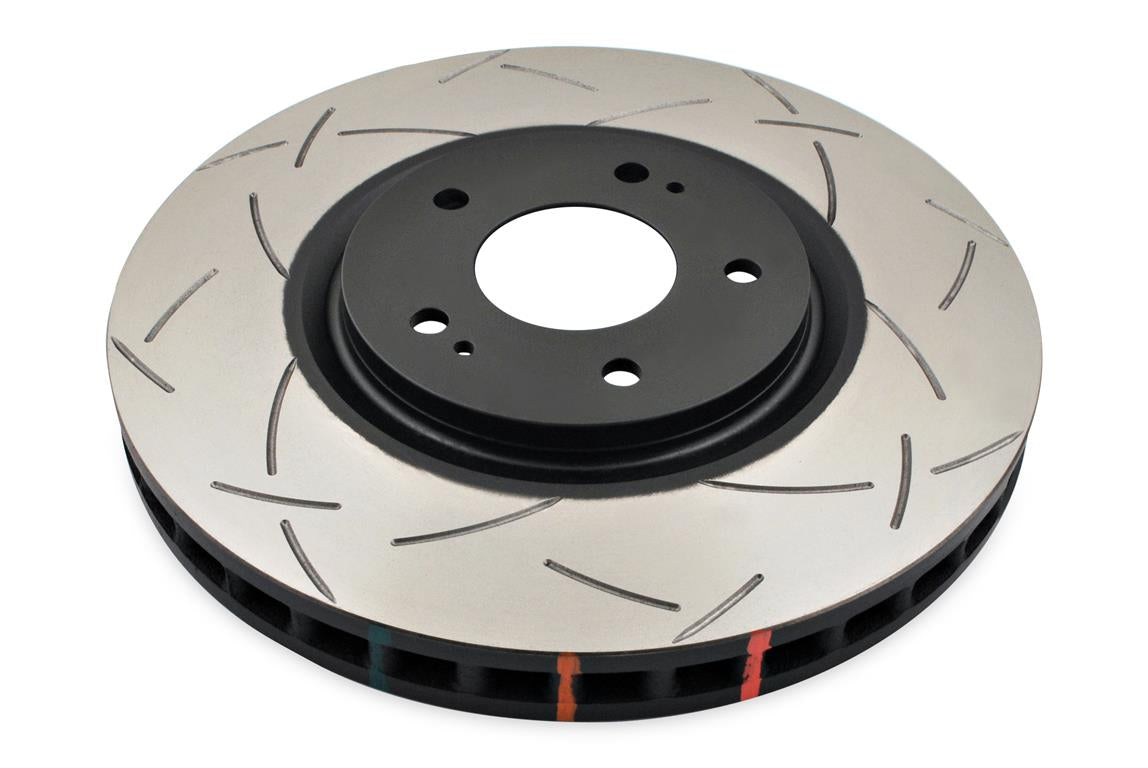

DBA4418S Brake Disc Specifications
- Part Number: DBA4418S
- Series: DBA 4000 Series T3
- Position: Front
- Diameter: 320mm
- Disc Ventilation: Kangaroo Paw
- Number of Holes: 5
- Inner Diameter: 69mm
- Thickness: 32mm
- Minimum Thickness: 29.8mm
- Height: 43.5mm
- Pitch Circle: 114.3mm
- Stage: Stage 4
- ECE R90 Approval: E11*90R02/06*60514*00
- Weight: 10.1kg per disc

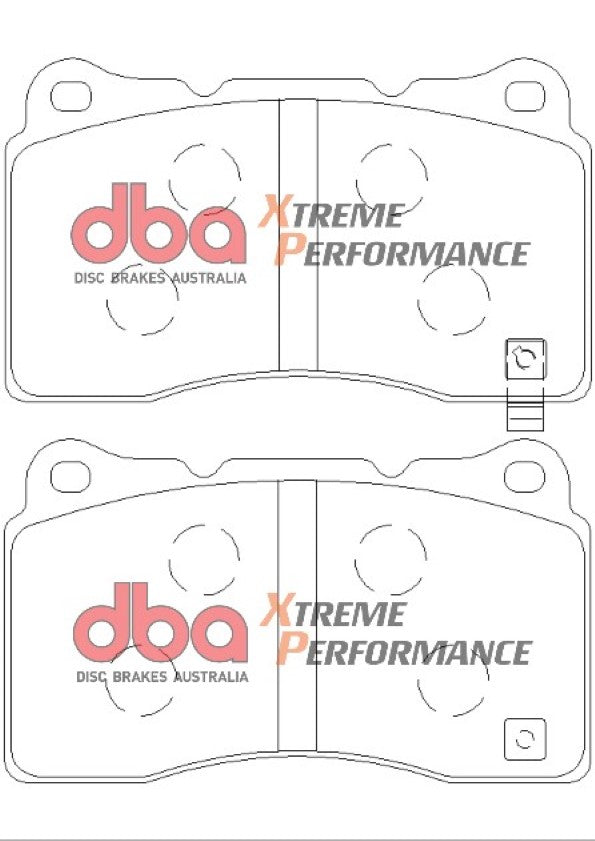

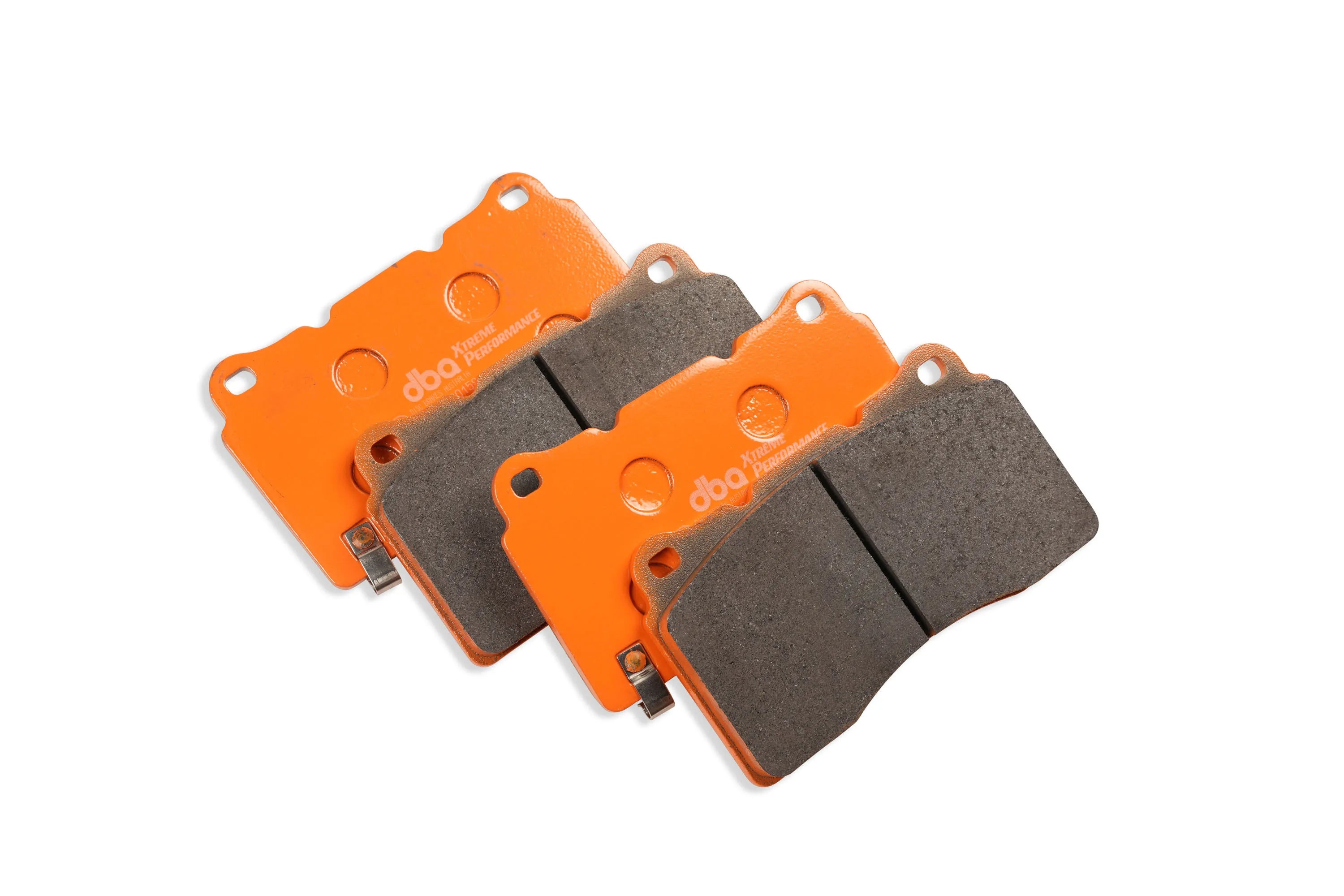

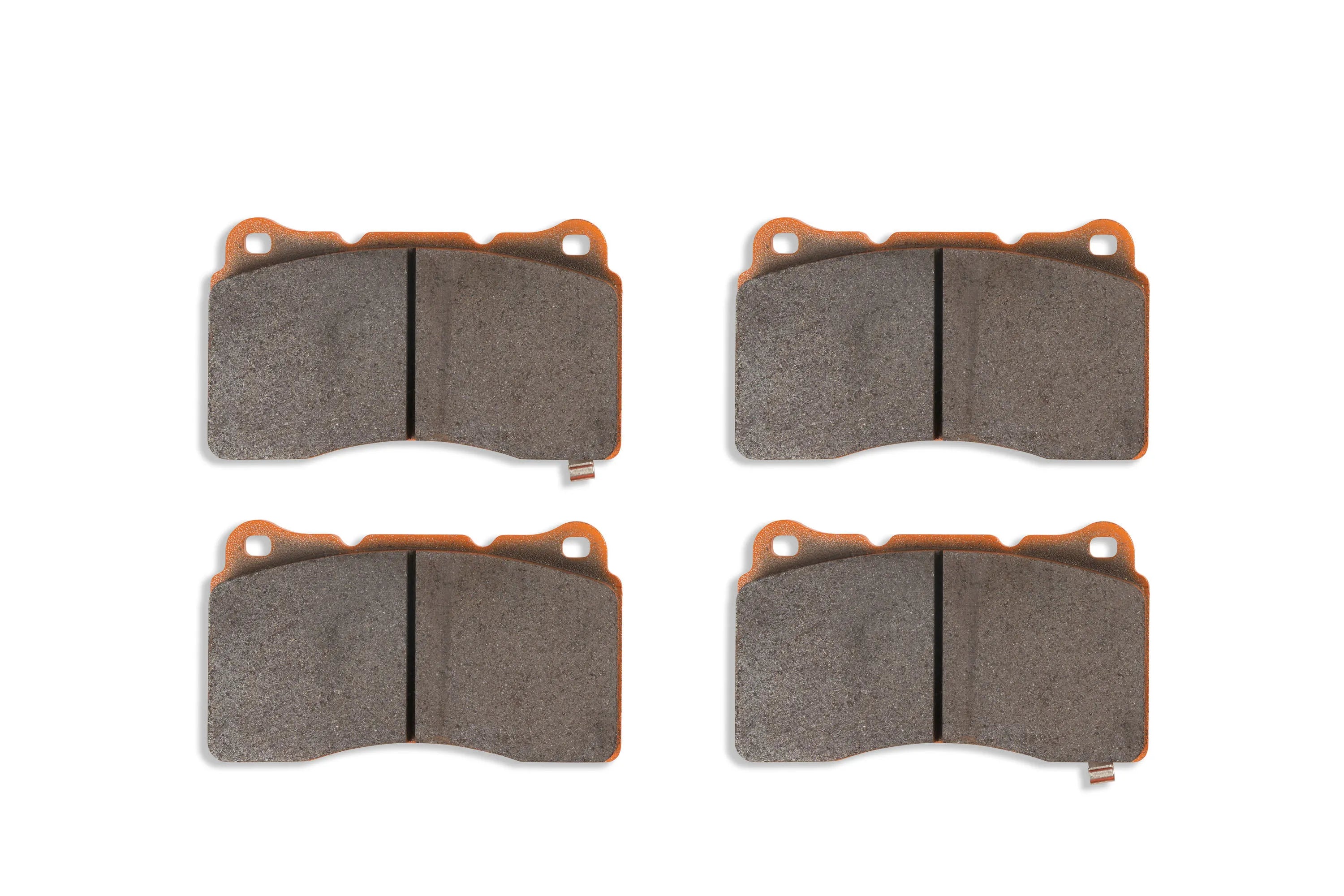

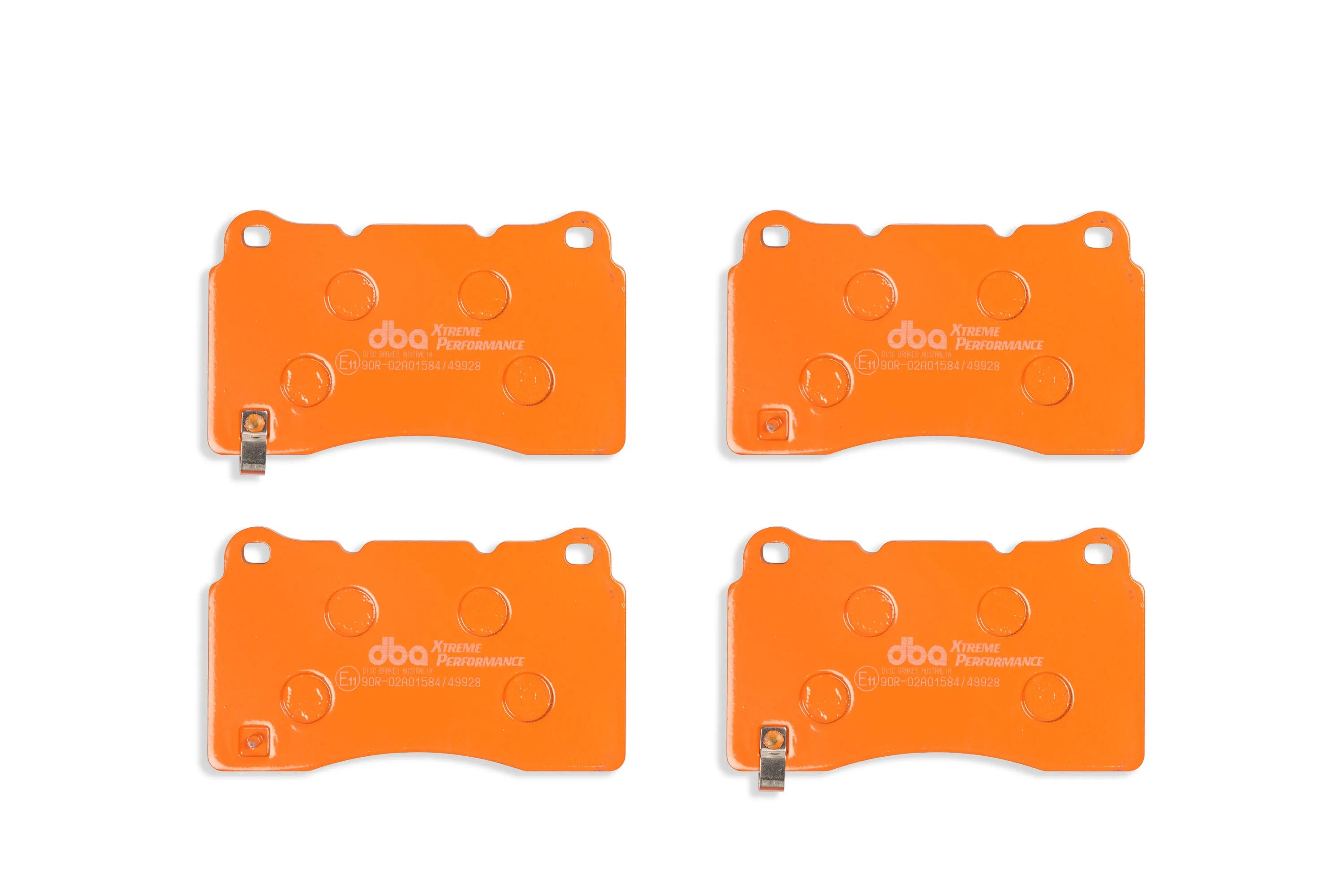

DB1678XP Brake Pad Specifications
- Part Number: DB1678XP
- Product Line: DBA Xtreme Performance
- Position: Front Axle
- Width: 131.8mm
- Height: 77.3mm
- Pad Thickness: 14mm
- FMSI: 7902-D1001
- OEM Reference: 26296FE100
- Friction Material: Semi-metallic carbon fibre
- Friction Rating: G-G Class
- Average Friction Coefficient: 0.45μ
- Optimal Braking Consistency: Up to 550°C / 1022°F
- ECE R90 Number: E11 R90-02A01584/49928
- Weight: 2.2kg
Vehicle Compatibility
- Mitsubishi Lancer Evolution 5 2.0 Turbo GSR 1997-1999 - Front
- Mitsubishi Lancer Evolution 6 2.0 Turbo 1998-2001 - Front
- Mitsubishi Lancer Evolution 7 2.0 Turbo 2000-2003 - Front
- Mitsubishi Lancer Evolution 8 2.0 Turbo 2002-2005 - Front
- Mitsubishi Lancer Evolution 9 2.0 Turbo 2005-2008 - Front
Fitment Notes
This kit is designed for compatible Mitsubishi Lancer Evolution 5-9 front brake applications using the factory-style 320mm front disc setup.
Please confirm your vehicle generation, model year, brake caliper setup and front disc size before ordering. Brake specifications can vary depending on market, previous modifications and imported vehicle versions.
Why Choose DBA 4000 Series T3 + XP Pads?
This DBA brake kit is designed as a matched disc and pad package for drivers who want improved braking performance without mixing untested components from different manufacturers. The 4000 Series T3 rotors provide strong heat management and consistent disc performance, while the XP pads deliver high initial bite, stable friction and excellent high-temperature braking performance.
