⚠️ Please note: Price is for one disc. If you need a pair, please order two.

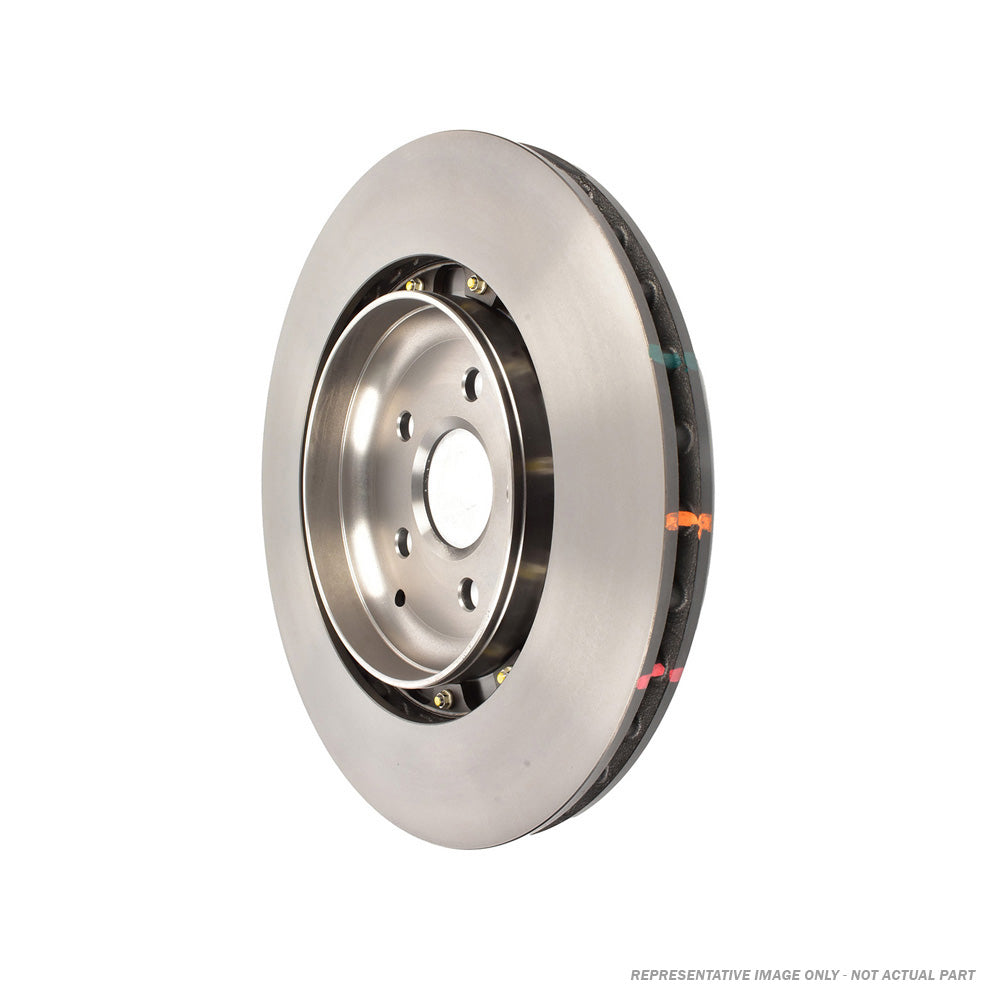

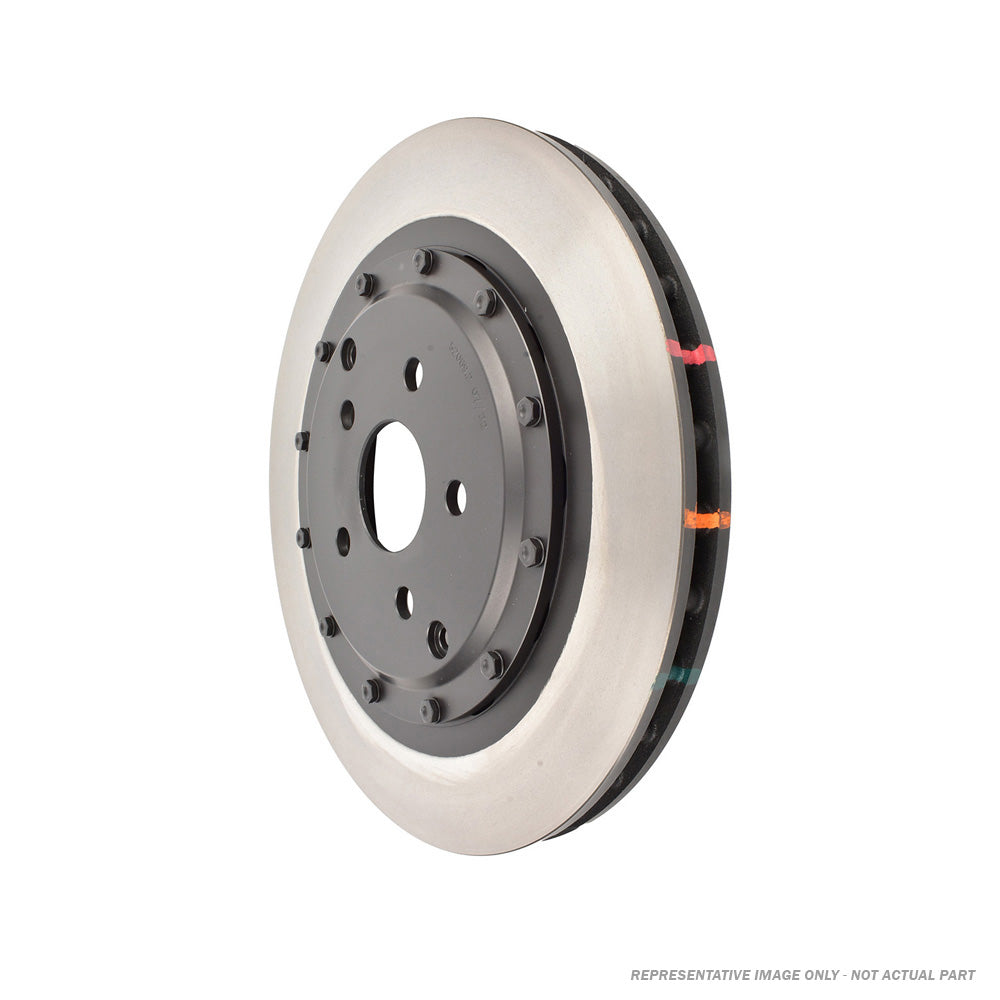

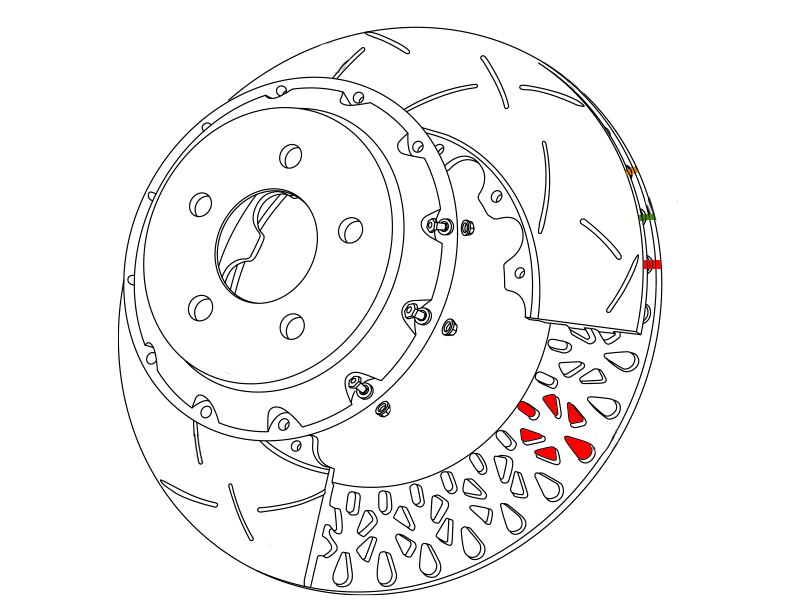

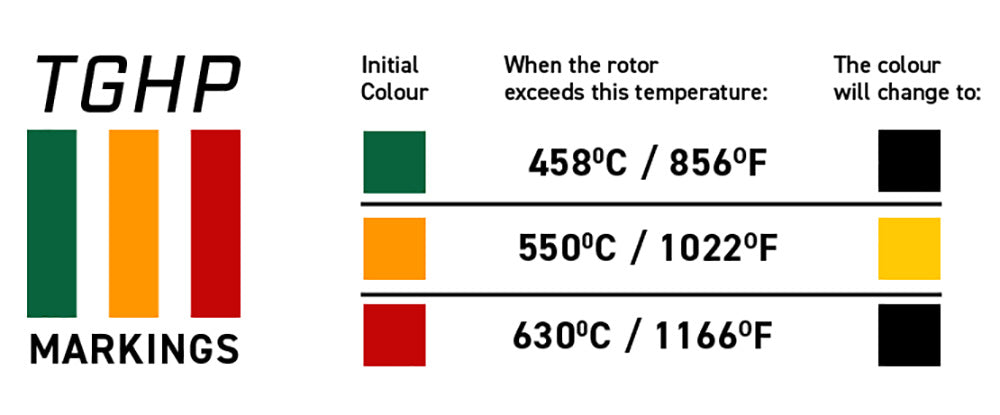

DBA’s 5000 Series HD Brake Rotors come all the performance technology DBA has to offer, two-piece direct replacement brake rotors with CBN machine turned finishes, made from high carbon alloy’s, equipped with DBA’s Kangaroo Paw ventilation system yields an impressive 30% increase in surface area, offer 20% improvement in cooling efficiency when compared to conventional straight vane designs and come with Thermographic heat paint markings which transition in color at specific temperature thresholds, providing a valuable visual cue for monitoring braking temperatures and evaluating rotor fatigue.
The incorporation of aerospace-grade aluminum hats not only diminishes the unsprung weight of the brake rotors but also facilitates uniform radial disc expansion within the cast iron rings. Additionally, it mitigates heat transfer from the disc to the hub through the aluminum hats.
DBA meticulously utilize top-tier materials to ensure optimal performance even under the most demanding conditions, integrating high carbon cast iron rings with Aluma-lite centre hats / bells that are securely fastened together using National Aerospace Standards (NAS) bolts and crimp nuts.
We offer complete assemblies for initial replacements (hats and friction rings bolted together) as well as replacement hats and flat disc rotors. This flexibility allows drivers to reuse their DBA 5000 Series hats with DBA replacement rings.
The overall 5000 Series rotors are highly recommended for high-performance street vehicles, track day’s and club & rally racing applications.
