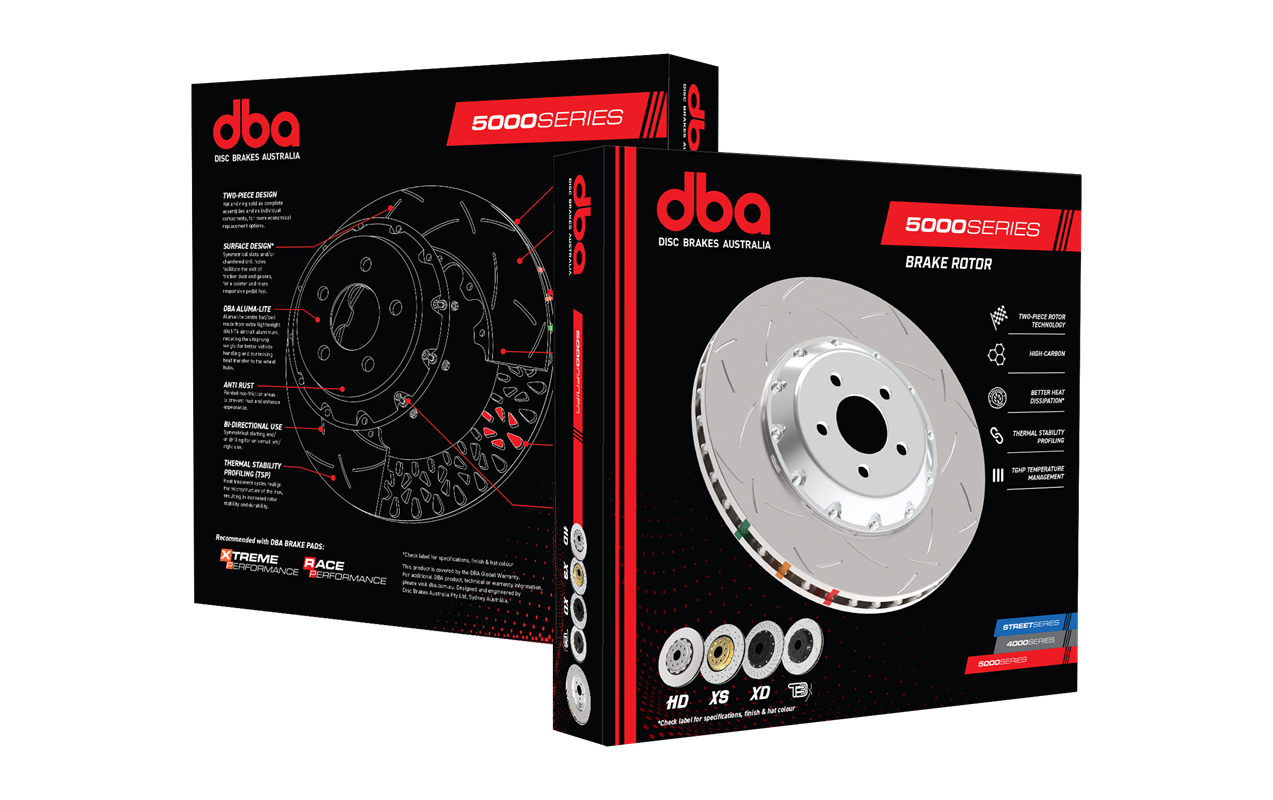

DBA52842SLVS 5000 Series T3 Slotted Brake Rotor – Premium Two-Piece Brembo Performance Disc
⚠️ Important note: Price is for one brake disc.

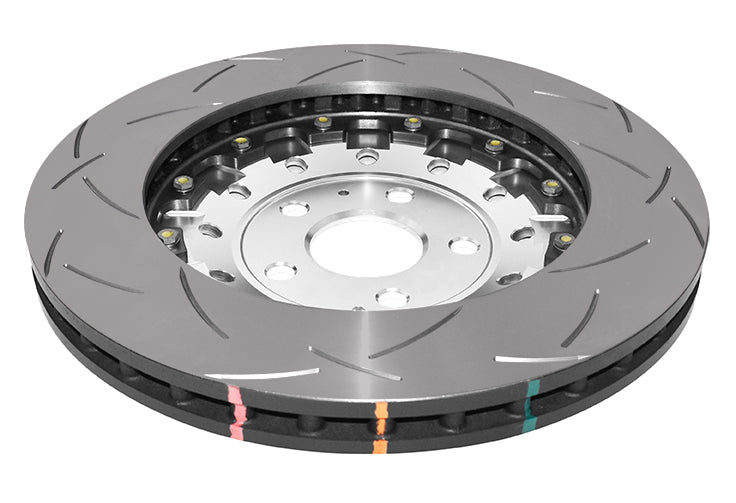

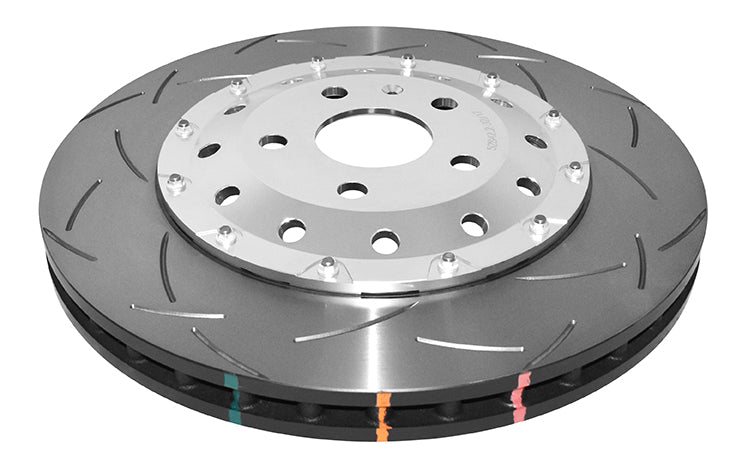

The DBA52842SLVS is a premium DBA 5000 Series T3 two-piece slotted brake rotor developed for high-performance street and track applications where thermal stability, braking consistency and reduced unsprung weight are essential.
Featuring a lightweight aluminium Silver Hat assembly, patented Kangaroo Paw ventilation technology and DBA’s advanced T3 slot design, the DBA52842SLVS delivers exceptional cooling efficiency and reliable stopping performance under repeated heavy braking conditions.
Designed specifically for high-performance Brembo-equipped VAG applications, this rotor is a direct-fit upgrade for several Audi TTRS, Cupra and Seat Cupra performance models using 370mm front brake systems.
Torque Lab is an official DBA dealer, supplying genuine DBA braking products with verified fitment support and performance-focused technical assistance across Europe.
Why choose DBA 5000 Series brake rotors?
- Premium two-piece floating rotor construction
- Lightweight aluminium Silver Hat design
- Reduced unsprung and rotational mass
- Improved thermal management and cooling efficiency
- T3 slot technology for improved pad bite and gas evacuation
- Excellent durability under repeated heavy braking
- Ideal for fast road and track applications
- Direct-fit replacement for OEM Brembo systems
DBA T3 & Kangaroo Paw Technology
T3 Slot Design
DBA’s patented T3 slot pattern:
- Improves initial brake response
- Enhances pad bite and pedal feel
- Removes friction gases and brake dust efficiently
- Improves braking consistency during aggressive driving
Kangaroo Paw Ventilation
The internal Kangaroo Paw ventilation system uses:
- 144 diamond and teardrop ventilation pillars
- Increased heat dissipation efficiency
- Improved rotor rigidity under extreme braking temperatures
5000 Series Two-Piece Construction
The DBA 5000 Series uses:
- Lightweight aerospace-grade aluminium hats
- Replaceable rotor ring design
- Improved thermal isolation between hub and rotor
This design significantly improves performance during repeated heavy braking and demanding track use.
Technical Specifications
- Part Number: DBA52842SLVS
- Series: DBA 5000 Series
- Rotor Type: Two-piece floating rotor
- Slot Pattern: T3 Slotted
- Hat Finish: Silver Hat
- Axle: Front axle
- Diameter: 370 mm
- Thickness: 32 mm
- Minimum Thickness: 30.4 mm
- Height: 49.7 mm
- Centre Bore: 65 mm
- PCD: 5x112
- Ventilation: Kangaroo Paw
- OEM Reference: 8J0615301E
- Replacement Rotor Ring: DBA52842.1S
- ECE R90 Number: E1190R02/0660518*00
- Weight: 11.17 kg
Vehicle Compatibility
Audi
- Audi TTRS quattro 8J 2.5 Turbo 340BHP (2009–2014)
- Audi TTRS Plus quattro 8J 2.5 Turbo 360BHP (2012–2014)
Cupra
- Cupra Ateca 2.0 Turbo 296BHP (2018–)
- Cupra Formentor 1.4 Hybrid 242BHP (2020–)
- Cupra Formentor 2.0 Turbo 310BHP (2020–)
- Cupra Formentor VZ 310BHP (2020–)
- Cupra Formentor 1.5 Hybrid 272BHP (2024–)
- Cupra Leon 2.0 Turbo 300BHP (2020–2022)
- Cupra Leon 2.0 Turbo 300BHP (2022–)
- Cupra Leon 1.5 Hybrid 272BHP (2024–)
- Cupra Leon 2.0 Hybrid 330BHP (2024–)
Seat
- Seat Leon 5F Cupra 280 2.0 Turbo (2014–2016)
- Seat Leon 5F Cupra 290 2.0 Turbo (2015–2017)
- Seat Leon 5F Cupra 300 2.0 Turbo (2017–2020)
- Seat Leon 5F Cupra R 310 2.0 Turbo (2018–2020)
All compatible applications use Brembo front brake calipers with 370mm brake discs.
Always verify exact fitment before ordering.
Recommended Brake Pads
Recommended matching DBA brake pads:
- DBA DB2228XP Xtreme Performance Brake Pads
Recommended for best stopping performance with DBA 4000 and 5000 Series T3 rotors.
