Endless EIP169 brake pads for the official manufacturer applications listed below.
Vehicle fitment
-
Audi A4 – 08/3-08/08 – 1.8 TFSI – Rear
-
Audi A4 – 08/9- – 1.8 TFSI – Rear
-
Audi A4 – 08/8- – AVANT 1.8 TFSI QUATTRO – Rear
-
Audi A4 – 11/4-16/1 – 2.0 TFSI – Rear
-
Audi A4 – 09/3-16/1 – 2.0 TFSI QUATTRO – Rear
-
Audi A4 – 09/3-16/1 – AVANT 2.0 TFSI QUATTRO – Rear
-
Audi A4 – 08/3- – 3.2 FSI QUATTRO – Rear
-
Audi A4 – 08/8- – AVANT 3.2 FSI QUATTRO – Rear
-
Audi A4 – 10/11- – ALLROAD QUATTRO 2.0 – Rear
-
Audi A5 – 09/4- – 2.0 TFSI QUATTRO – Rear
-
Audi A5 – 08/2- – 3.2 FSI QUATTRO – Rear
-
Audi A5 – 09/8- – 3.2 FSI QUATTRO CABRIOLET – Rear
-
Audi A5 – 12/1- – 2.0 TFSI QUATTRO CABRIOLET – Rear
-
Audi A5 – 10/1- – 2.0 TFSI QUATTRO SPORTBACK – Rear
-
Audi Q5 – 09/6-12/10 – 2.0 TFSI QUATTRO – Rear
-
Audi Q5 – 12/11- – 2.0 TFSI QUATTRO – Rear
-
Audi Q5 – 09/6-12/10 – 3.2 FSI QUATTRO – Rear
-
Audi Q5 – 16/1- – 2.0 TFSI QUATTRO, TFSI QUATTRO S LINE COMPETITION PLUS – Rear
-
Audi Q5 – 12/11- – 3.0 TFSI QUATTRO – Brembo – Rear
-
Audi Q5 – 12/11- – TRW – Rear
-
Audi Q5 – 13/2- – HYBRID QUATTRO BASE GRADE – Brembo – Rear
-
Audi RS5 – 10/09-17/04 – COUPE 4.2 QUATTRO – PR No.GP0/GP1 – Rear
-
Audi S4 – 11/04-06/08 – S4 Quattro – Rear
-
Audi S5 – 08/2- – 4.2 FSI QUATTRO – Rear
-
Audi S5 – 12/01-17/04 – 3.0 QUATTRO – Rear
-
Audi S5 – 10/9-17/04 – 3.0 QUATTRO CABRIOLET – Rear
-
Audi SQ5 – 13/10-17/10 – 3.0 QUATTRO – Rear

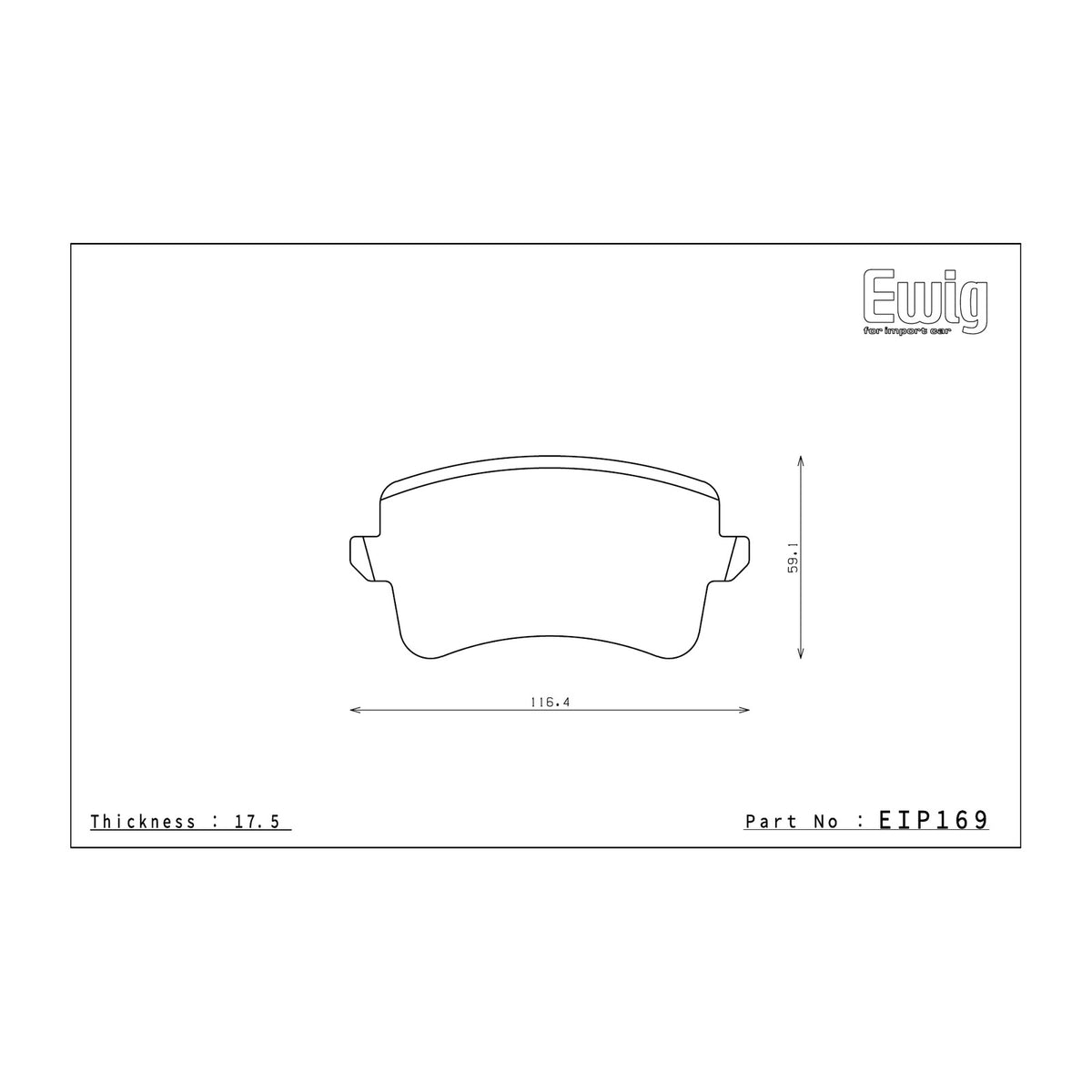

Brake pad specifications
-
Endless pad shape: EIP169
-
Position: Rear
-
Width: 116 mm
-
Height: 59 mm
-
Thickness: 17.5 mm
-
Radial depth: 48.1 mm
Compound options
MX72
Endless MX72 is a ceramic-carbon-metallic performance compound for high-speed road use and occasional circuit driving.
-
Friction: 0.37-0.47 µ
-
Temperature range: 50-700°C
-
Recommended use: Performance street / fast road / track day
MX72 PLUS
MX72 PLUS adds higher heat resistance and stronger initial bite while retaining excellent control.
-
Friction: 0.39-0.47 µ
-
Temperature range: 50-750°C
-
Recommended use: Performance street / demanding track day
MX87
MX87 is developed for quick response and initial bite from lower temperatures, suited to fast road driving and track days.
-
Friction: 0.38-0.46 µ
-
Temperature range: 30-700°C
-
Recommended use: Fast road / street / track day
SSM-PLUS
SSM-PLUS is Endless' street-focused option with very low dust and noise, long service life and easy modulation.
-
Friction: 0.33-0.40 µ
-
Temperature range: 0-550°C
-
Recommended use: Street / spirited road driving
Official Endless dealer: Torque Lab supplies genuine Endless brake products across Croatia and the EU.
Fitment and technical data are based on Endless 2026 manufacturer-supplied application and pad-shape data. Match all brake-system restrictions before ordering.
