Forge Motorsport Recirculation Valve and Kit for Audi and VW 1.8 and 2.0 TSI/TFSI — Diverter Blow Off Valve for Audi A3 (8V) 2013-2020 1.8/2.0 TSI 2015 Onwards. Technical specifications and compatibility are based on Forge Motorsport product data.
Product Details
This will replace OEM part numbers06H 145 710D, 06F 145 710G, & 06H 145 710 C
Forge Motorsport is proud to release the latest version of Forge Motorsport's very popular solenoid driven valve for the 2013-on VAG 1.8 TSI/TFSI engine (US codes CPKA and CPRA) and 2.0 TSI/TFSI engine (Euro code CNTA, CHHA, CHHB, CJXB, CZPA, and CJXC;US codes CPLA and CPPA) including Golf MK7 R
This valve is fully engineered to remedy the failure issues experienced with the OEM solenoid valves when their diaphragm may rupture which results in a boost leak. The later revision OEM valves have a longer lift but ultimately the plastic brittles and in extreme circumstances, parts of the plastic can break off. Forge Motorsport's valve uses full billet alloy construction with a piston based internal design that provides for significantly improved reliability over the OEM valves along with lightning fast response. It has also been proven in cars running over 600bhp!
This new valve has a very short overall installed height, which enables fitment of this atmospheric valve into the tight space between the turbo and the inlet hose from the airfilter, older larger valves and sandwich plates will not fit this engine.
Forge Motorsport recommendservicingyour valve every 3 years, or 20,000 miles, whichever comes sooner

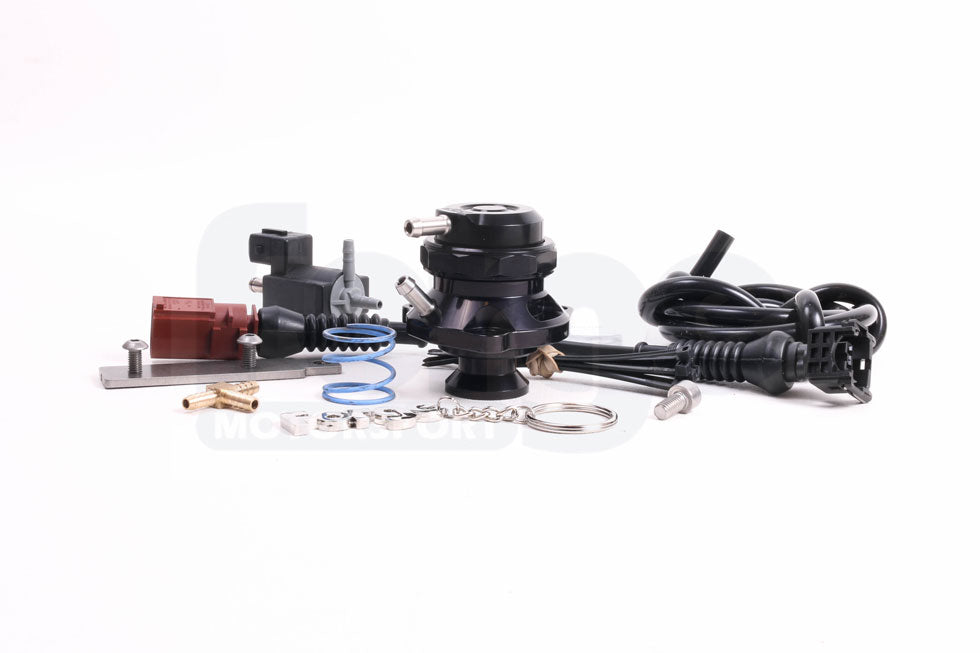

In The Box:
1 x FMDVMK7R Valve
1 x Wiring Harness
1 x Solenoid, Bracket, and Screws
1 x Uprated Blue Spring
10 x Cable Ties
1 x 1000mm of 4mm Vacuum Tube
1 x 5mm T Piece
1 x Instructions
1 x Forge Keyring and Sticker
Vehicle Fitment
- Audi – A3 – (8V) 2013-2020 – 1.8/2.0 TSI 2015 Onwards
- Audi – A4 – (B8/B8.5) 2008-2016 – 1.8/2.0 TFSI
- Audi – A4 – (B9) 2016-2021 – 2.0 TFSI
- Audi – S1
- Audi – S3 – 2.0 TSI (8V Chassis)
- Audi – SQ2 – 2015 - 2019
- Audi – TT – Mk3 (2015-) – 2.0 TSI 2015 Onwards (8S)
- Audi – TT – Mk3 (2015-) – 45 TFSI (2019-2021) (8S)
- Audi – TT – Mk3 (2015-) – TTS 8S (2014-2021)
- Cupra – Ateca – 2.0 TSI – 2018-2023
- Porsche – Macan 2014 On
- Seat – Ibiza – Mk4.5 (6P) 2015-2017 – 1.8 TSI
- Seat – Leon – Mk3 2012-2020 – Cupra 280/290/300R
- Skoda – Kodiaq – 2.0TSI (EA888 Gen 3)
- Skoda – Octavia – Mk3 5E 2012-2019 – 1.8 TSI
- Skoda – Octavia – Mk3 5E 2012-2019 – VRS 2.0 TSI
- Skoda – Superb – 2.0TSI 220 BHP
- Skoda – Superb – 280 4x4 DSG
- Volkswagen – Arteon – (2017-2020) – 2.0 TSI
- Volkswagen – Golf – MK7 – 1.8 TFSI
Additional Forge-listed applications are indexed in the product fitment data (33 applications in total). Confirm exact vehicle specification before ordering.
